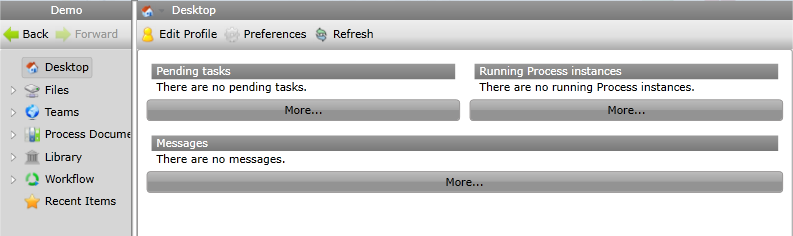

The Desktop
The Desktop contains an overview of your current session as well as options to customize your user profile and your preferences.

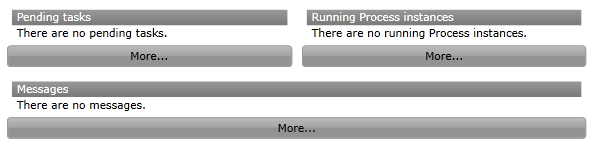

Dashboard
This screen informs you about current workflow activities.
- Pending tasks
-
Overview of your current tasks
- Running Process instances
-
Overview of your monitored running process instances
- Messages
-
Overview of messages that have been delivered to you
- Invitations
-
Pending invitations to other teams

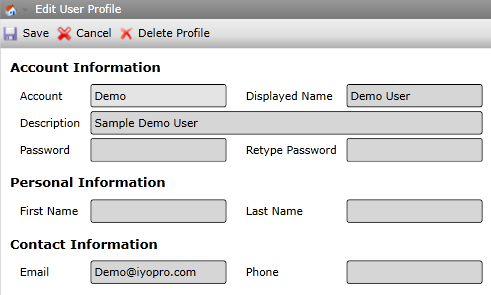

Edit Profile
In your user profile you can edit the following information:
Account Information
- Account
-
This field is read only and specifies your login name.
- Displayed Name
-
The name that is associated with your activities.
- Description
-
The description is usually shown in selection lists.
- Password
-
You may specify your password.
- Retype Password
-
Repeat your password.

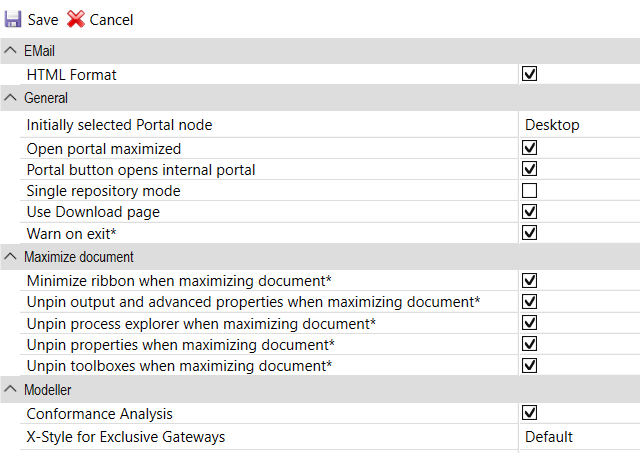

Preferences
Settings marked with an asterisk take effect only after you restart IYOPRO. The following preferences can be modified:
- HTML Format
-
Decide if the emails, which you receive from IYOPRO are HTML formatted or plain text.
General
- Initially selected Portal node
-
Choose the page which will be presented initially when the Portal is opened.
- Open portal maximized
-
Decide if the Portal is opened maximized or as new tab.
- Portal button opens internal portal
-
The portal is opened internally (IYOPRO App) instead of externally (IYOPRO Web)
- Single repository mode
-
This forces IYOPRO to reopen an existing repository window instead of creating a new one
- Use Download page
-
Depending on your browser, the usability when downloading files from IYOPRO may be better using a download page or not.
- Warn on exit
-
Warning message in case you exit IYOPRO without saving.
Maximize document
- Minimize ribbon when maximizing document
-
The ribbon menu is minimized.
- Unpin output and advanced properties when maximizing document
-
The output/advanced properties window is minimized.
- Unpin process explorer when maximizing document
-
The process explorer window is minimized.
- Unpin properties when maximizing document
-
The properties window is minimized.
- Unpin toolboxes when maximizing document
-
Displayed toolboxes are minimized.
Modeler
- Conformance Analysis
-
The Conformance Analysis will be performed while modeling.
- X-Style for Exclusive Gateways
-
New Exclusive Gateways are displayed with or without X.
- Initial diagram language
-
Choose the language in which diagrams will be created and shown initially.
- Activate New Control
-
New symbols dragged from the toolbox into the work area are selected by default or not.
- Display Grid Lines
-
Activate raster overlay.
- Display Lane Path
-
Show in which Swimlane(s) the selected element is located.
- Display Preview Image
-
Activate navigation preview.
- Display View Controls
-
Activate zoom pan control.
- Flip Pan Direction
-
Activate, if you wish to reverse the pan direction of the view control.
- New Control Font
-
Define the default font for new elements
- New Control Font Size
-
Define the default font size for new elements.
- Toolbar Visibility
-
Control the behavior, when the toolbar will be shown in the modeler.
